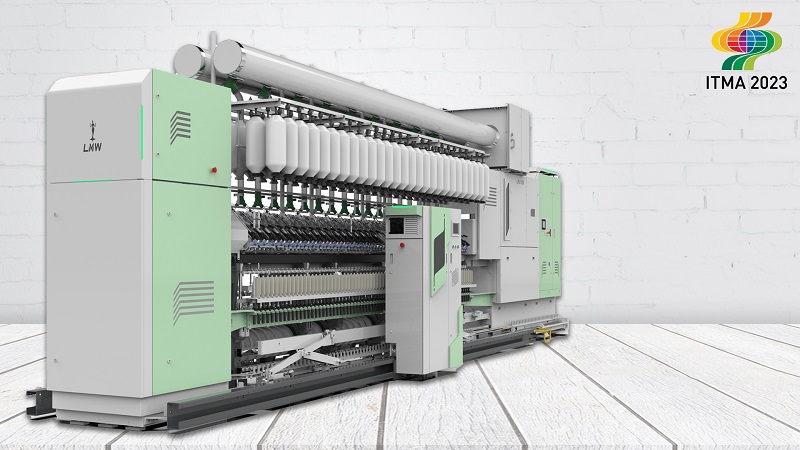

Smartest Ring Frame for Smart Spinning

LMW proudly introduces the Longest Smart Ring Frame LR 90 Series, the first of its kind to the market with a host of features that deliver superlative benefits to the end user. The machine comes in two variants, LR90 SX/SXL (without compact) and LRJ 90 SX/SXL (with inbuilt suction compact arrangement).

Increased Productivity and Quality

The Ring Frame LR 90 Series is the longest ring frame offering in the market with a maximum spindleage of up to 2400. With a higher spindle speed of up to 30,000 rpm (mechanical), the machine delivers higher productivity with consistent quality. The technological enhancements and the quality package ensure up to 30% improvement in yarn imperfection and classimat H1 fault and reduction in EBH upto 2-3%.

Power Savings

The energy efficient, low decibel HLED spindles coupled with HK RYC consumes lower power and saves up to 8%. The pneumafil suction and compact suction are so designed that the overall power savings including the spindles is up to 10%.

Compact Footprint

This Smart Ring frame is design with a gauge length of 65 mm and occupies lowest footprint and saves space of up to 8%.

Automation

The state-of-the-art automation includes the Ring rail drive, New auto-doffer drive mechanisms and Suction unit with AWES.
